Copper Nickel - Buttweld Fittings

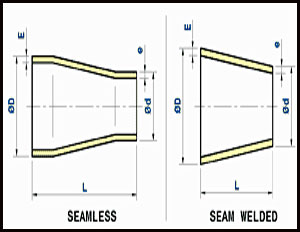

Concentric Reducers - DIN 86089 / EEMUA 146 In Copper Nickel




10 bar - DIN 86089



Outside diameter Wall Length Theoretical
ØD x Ød ØD x Ød thickness weight
nominal
inch
actual
mm
E
mm
e
mm
L
mm

Kg/piece

0.5 x 0.38 20 x 16 1 1 30 0.01
0.75 x 0.38 25 x 16 1.5 1 30 0.02
0.75 x 0.5 25 x 20 1.5 1 30 0.03
1 x 0.38 30 x 16 1.5 1 35 0.03
1 x 0.5 30 x 20 1.5 1 35 0.04
1 x 0.75 30 x 25 1.5 1.5 35 0.05
1.25 x 0.38 38 x 16 1.5 1 50 0.05
1.25 x 0.5 38 x 20 1.5 1 50 0.06
1.25 x 0.75 38 x 25 1.5 1.5 50 0.07
1.25 x 1 38 x 30 1.5 1.5 50 0.08
1.5 x 0.5 44.5 x 20 1.5 1 80 0.09
1.5 x 0.75 44.5 x 25 1.5 1.5 80 0.11
1.5 x 1 44.5 x 30 1.5 1.5 80 0.12
1.5 x 1.25 44.5 x 38 1.5 1.5 80 0.13
2 x 0.75 57 x 25 1.5 1.5 80 0.13
2 x 1 57 x 30 1.5 1.5 80 0.14
2 x 1.25 57 x 38 1.5 1.5 80 0.15
2 x 1.5 57 x 44.5 1.5 1.5 80 0.16
2.5 x 1 76.1 x 30 2 1.5 90 0.24
2.5 x 1.25 76.1 x 38 2 1.5 90 0.25
2.5 x 1.5 76.1 x 44.5 2 1.5 90 0.26
2.5 x 2 76.1 x 57 2 1.5 90 0.29
3 x 1.25 88.9 x 38 2 1.5 90 0.29
3 x 1.5 88.9 x 44.5 2 1.5 90 0.30
3 x 2 88.9 x 57 2 1.5 90 0.32
3 x 2.5 88.9 x 76 2 2 90 0.40
4 x 1.5 108 x 44.5 2.5 1.5 100 0.46
4 x 2 108 x 57 2.5 1.5 100 0.48
4 x 2.5 108 x 76.1 2.5 2 100 0.57
4 x 3 108 x 88.9 2.5 2 100 0.61
5 x 2 133 x 57 2.5 1.5 140 0.8
5 x 2.5 133 x 76.1 2.5 2 140 0.93
5 x 3 133 x 88.9 2.5 2 140 0.98
5 x 4 133 x 108 2.5 2.5 140 1.16
5 x 2 133 x 57 3 1.5 140 0.86
5 x 2.5 133 x 76.1 3 2 140 1.06
5 x 4 133 x 108 3 2.5 140 1.34
6 x 2.5 159 x 76.1 2.5 2 150 1.13
6 x 3 159 x 88.9 2.5 2 150 1.19
6 x 4 159 x 108 2.5 2.5 150 1.38
6 x 5 159 x 133 2.5 2.5 150 1.51
6 x 2.5 159 x 76.1 3 2 150 1.35
6 x 4 159 x 108 3 2.5 150 1.65
7 x 3 193.7 x 88.9 2.5 2 155 1.39
7 x 4 193.7 x 108 2.5 2.5 155 1.58
7 x 5 193.7 x 133 2.5 2.5 155 1.71
7 x 6 193.7 x 159 2.5 2.5 155 1.86
7 x 4 193.7 x 108 3.5 2.5 155 2.21
8 x 4 219.1 x 108 3 2.5 155 2.47
8 x 5 219.1 x 133 3 2.5 155 2.6
8 x 6 219.1 x 159 3 2.5 155 2.74
8 x 7 219.1 x 193.7 3 2.5 155 2.93
8 x 4 219.1 x 108 3.5 2.5 155 2.88
10 x 5 267 x 133 3 2.5 210 3.3
10 x 6 267 x 159 3 2.5 210 3.49
10 x 7 267 x 193.7 3 2.5 210 3.75
10 x 8 267 x 219.1 3 3 210 4.25
12 x 5 323.9 x 133 4 2.5 210 5.3
12 x 6 323.9 x 159 4 2.5 210 5.6
12 x 7 323.9 x 193.7 4 2.5 210 6.02
12 x 8 323.9 x 219.1 4 3 210 6.3
12 x 10 323.9 x 267 4 3 210 6.88
14 x 6 368 x 159 4 2.5 300 8.75
14 x 7 368 x 193.7 4 2.5 300 9.34
14 x 8 368 x 219.1 4 3 300 9.76
14 x 10 368 x 267 4 3 300 10.57
14 x 12 368 x 323.9 4 4 300 11.53
16 x 7 419.1 x 193.7 4 2.5 325 11.04
16 x 8 419.1 x 219.1 4 3 325 11.5
16 x 10 419.1 x 267 4 3 300 12.38
16 x 12 419.1 x 323.9 4 4 300 13.42
16 x 14 419.1 x 368 4 4 300 14.22
18 x 8 457.2 x 219.1 4 3 350 13.14
18 x 10 457.2 x 267 4 3 350 14.08
18 x 12 457.2 x 323.9 4 4 350 15.2
18 x 14 457.2 x 368 4 4 350 16.06
18 x 16 457.2 x 419.1 4 4 350 17.07
20 x 10 508 x 267 4.5 3 375 18.07
20 x 12 508 x 323.9 4.5 4 375 19.42
20 x 14 508 x 368 4.5 4 375 20.47
20 x 16 508 x 419.1 4.5 4 375 21.68
20 x 18 508 x 457.2 4.5 4 375 22.57
24 x 14 508 x 368 5 4 400 27.19
24 x 16 610 x 419.1 5 4 400 28.62
24 x 18 610 x 457.2 5 4 400 29.69
24 x 20 610 x 508 5 4.5 400 31.12



» 14 bar - DIN 86089




Outside diameter Wall Length Theoretical
ØD x Ød ØD x Ød thickness weight
nominal
inch
actual
mm
E
mm
e
mm
L
mm

Kg/piece

3 x 1.25 88.9 x 38 2.5 1.5 90 0.33
3 x 1.5 88.9 x 44.5 2.5 1.5 90 0.35
3 x 2 88.9 x 57 2.5 1.5 90 0.38
3 x 2.5 88.9 x 76.1 2.5 2 90 0.48
4 x 3 108 x 88.9 2.5 2.5 100 0.61
5 x 3 133 x 88.9 3 2.5 140 1.13
6 x 3 159 x 88.9 3 2.5 150 1.42
6 x 5 159 x 133 3 3 150 1.81
7 x 3 193.7 x 88.9 3.5 2.5 155 1.94
7 x 5 193.7 x 133 3.5 3 155 2.39
7 x 6 193.7 x 159 3.5 3 155 2.6
8 x 5 219.1 x 133 3.5 3 155 3.03
8 x 6 219.1 x 159 3.5 3 155 3.2
8 x 7 219.1 x 193.7 3.5 3.5 155 3.42
10 x 5 267 x 133 4 3 210 4.4
10 x 6 267 x 159 4 3 210 4.65
10 x 7 267 x 193.7 4 3.5 210 5
10 x 8 267 x 219.1 4 3.5 210 5.65
12 x 5 323.9 x 133 5 3 210 6.62
12 x 6 323.9 x 159 5 3 210 7
12 x 7 323.9 x 193.7 5 3.5 210 7.52
12 x 8 323.9 x 219.1 5 3.5 210 7.9
12 x 10 323.9 x 267 5 4 210 8.6
14 x 6 368 x 159 5.5 3 300 12.03
14 x 7 368 x 193.7 5.5 3 300 12.84
14 x 8 368 x 219.1 5.5 3.5 300 13.42
14 x 10 368 x 267 5.5 4 300 14.53
14 x 12 368 x 323.9 5.5 5 300 15.85
16 x 7 419.1 x 193.7 6 3.5 325 16.56
16 x 8 419.1 x 219.1 6 3.5 325 17.25
16 x 10 419.1 x 267 6 4 325 18.57
16 x 12 419.1 x 323.9 6 5 325 20.13
16 x 14 419.1 x 368 6 5.5 325 21.33
18 x 8 457.2 x 219.1 6 3.5 350 19.7
18 x 10 457.2 x 267 6 4 350 21.1
18 x 12 457.2 x 323.9 6 5 350 22.8
18 x 14 457.2 x 368 6 5.5 350 24.1
18 x 16 457.2 x 419.1 6 6 350 25.8
20 x 10 508 x 267 6.5 4 375 26.1
20 x 12 508 x 323.9 6.5 5 375 28.05
20 x 14 508 x 368 6.5 5.5 375 29.6
20 x 16 508 x 419.1 6.5 6 375 31.3
20 x 18 508 x 457.2 6.5 6 375 32.6
24 x 14 610 x 368 8 5.5 400 43.5
24 x 16 610 x 419.1 8 6 400 45.8
24 x 18 610 x 457.2 8 6 400 47.5
24 x 20 610 x 508 8 6.5 400 49.8



» 16 bar - EEMUA 146



Outside diameter Wall Length Theoretical
ØD x Ød ØD x Ød thickness weight
nominal
inch
actual
mm
E
mm
e
mm
L
mm

Kg/piece

1 x 0.75 30 x 25 2.5 2 51 0.09
1.25 x 0.75 38 x 25 2.5 2 51 0.1
1.25 x 1 38 x 30 2.5 2.5 51 0.11
1.5 x 0.75 44.5 x 25 2.5 2 64 0.14
1.5 x 1 44.5 x 30 2.5 2.5 64 0.15
1.5 x 1.25 44.5 x 38 2.5 2.5 64 0.17
2 x 1 57 x 30 2.5 2.5 76 0.21
2 x 1.25 57 x 38 2.5 2.5 76 0.23
2 x 1.5 57 x 44.5 2.5 2.5 76 0.25
2.5 x 1.25 76.1 x 38 2.5 2.5 89 0.34
2.5 x 1.5 76.1 x 44.5 2.5 2.5 89 0.36
2.5 x 2 76.1 x 57 2.5 2.5 89 0.4
3 x 1.5 88.9 x 44.5 2.5 2.5 89 0.4
3 x 2 88.9 x 57 2.5 2.5 89 0.44
3 x 2.5 88.9 x 76.1 2.5 2.5 89 0.5
4 x 2 108 x 57 3 2.5 102 0.68
4 x 2.5 108 x 76.1 3 2.5 102 0.76
4 x 3 108 x 88.9 3 2.5 102 0.82
6 x 2 159 x 57 3 2.5 140 1.3
6 x 2.5 159 x 76.1 3 2.5 140 1.35
6 x 3 159 x 88.9 3 2.5 140 1.42
6 x 4 159 x 108 3 3 140 1.54
8 x 2.5 219.1 x 76.1 4 2.5 152 2.45
8 x 3 219.1 x 88.9 4 2.5 152 2.55
8 x 4 219.1 x 108 4 3 152 2.72
8 x 6 219.1 x 159 4 3 152 3.16
10 x 4 267 x 108 4.5 3 178 4.11
10 x 6 267 x 159 4.5 3 178 4.69
10 x 8 267 x 219.1 4.5 4 178 5.36
12 x 6 323.9 x 159 5.5 3 203 7.39
12 x 8 323.9 x 219.1 5.5 4 203 8.33
12 x 10 323.9 x 267 5.5 4.5 203 9.09
14 x 8 368 x 219.1 6.5 4 330 17.28
14 x 10 368 x 267 6.5 4.5 330 18.73
14 x 12 368 x 323.9 6.5 5.5 330 20.44
16 x 10 419.1 x 267 7 4.5 356 23.51
16 x 12 419.1 x 323.9 7 5.5 356 25.51
16 x 14 419.1 x 368 7 6.5 356 27.04
18 x 12 457.2 x 323.9 8 5.5 381 32.72
18 x 14 457.2 x 368 8 6.5 381 34.61
18 x 16 457.2 x 419.1 8 7 381 36.80
20 x 14 508 x 368 8.5 6.5 508 52.07
20 x 16 508 x 419.1 8.5 7 508 55.17
20 x 18 508 x 457.2 8.5 8 508 57.48
24 x 16 610 x 419.1 10.5 7 508 75.49
24 x 18 610 x 457.2 10.5 8 508 78.34
24 x 20 610 x 508 10.5 8.5 508 82.15
28 x 18 711 x 457.2 12 8 610 117.58
28 x 20 711 x 508 12 8.5 610 122.82
28 x 24 711 x 610 12 10.5 610 133.30
32 x 24 813 x 610 13.5 10.5 610 161.42
32 x 28 813 x 711 13.5 12 610 173.09
36 x 24 914 x 610 15.5 10.5 610 274.48
36 x 28 914 x 711 15.5 12 610 287.89
36 x 32 914 x 813 15.5 13.5 610 301.43




» 20 bar - EEMUA 146



Outside diameter Wall Length Theoretical
ØD x Ød ØD x Ød thickness weight
nominal
inch
actual
mm
E
mm
e
mm
L
mm

Kg/piece

1 x 0.75 30 x 25 2.5 2 51 0.09
1.25 x 0.75 38 x 25 2.5 2 51 0.1
1.25 x 1 38 x 30 2.5 2.5 51 0.11
1.5 x 0.75 44.5 x 25 2.5 2 64 0.14
1.5 x 1 44.5 x 30 2.5 2.5 64 0.15
1.5 x 1.25 44.5 x 38 2.5 2.5 64 0.17
2 x 1 57 x 30 2.5 2.5 76 0.21
2 x 1.25 57 x 38 2.5 2.5 76 0.23
2 x 1.5 57 x 44.5 2.5 2.5 76 0.25
2.5 x 1.25 76.1 x 38 2.5 2.5 89 0.34
2.5 x 1.5 76.1 x 44.5 2.5 2.5 89 0.36
2.5 x 2 76.1 x 57 2.5 2.5 89 0.4
3 x 1.5 88.9 x 44.5 2.5 2.5 89 0.4
3 x 2 88.9 x 57 2.5 2.5 89 0.44
3 x 2.5 88.9 x 76.1 2.5 2.5 89 0.5
4 x 2 108 x 57 3 2.5 102 0.68
4 x 2.5 108 x 76.1 3 2.5 102 0.76
4 x 3 108 x 88.9 3 2.5 102 0.82
6 x 2 159 x 57 3.5 2.5 140 1.5
6 x 2.5 159 x 76.1 3.5 2.5 140 1.56
6 x 3 159 x 88.9 3.5 2.5 140 1.65
6 x 4 159 x 108 3.5 3 140 1.78
8 x 2.5 219.1 x 76.1 4.5 2.5 152 2.74
8 x 3 219.1 x 88.9 4.5 2.5 152 2.87
8 x 4 219.1 x 108 4.5 3 152 3.05
8 x 6 219.1 x 159 4.5 3.5 152 3.54
10 x 4 267 x 108 5.5 3 178 5.00
10 x 6 267 x 159 5.5 3.5 178 5.70
10 x 8 267 x 219.1 5.5 4.5 178 6.53
12 x 6 323.9 x 159 7 3.5 203 9.35
12 x 8 323.9 x 219.1 7 4.5 203 10.55
12 x 10 323.9 x 267 7 5.5 203 11.52
14 x 8 368 x 219.1 8 4.5 330 21.16
14 x 10 368 x 267 8 5.5 330 22.95
14 x 12 368 x 323.9 8 7 330 25.06
16 x 10 419.1 x 267 9 5.5 356 30.05
16 x 12 419.1 x 323.9 9 7 356 32.62
16 x 14 419.1 x 368 9 8 356 34.60
18 x 12 457.2 x 323.9 9.5 7 381 38.85
18 x 14 457.2 x 368 9.5 8 381 41.10
18 x 16 457.2 x 419.1 9.5 9 381 43.70
20 x 14 508 x 368 11 8 508 67.38
20 x 16 508 x 419.1 11 9 508 71.39
20 x 18 508 x 457.2 11 9.5 508 74.38
24 x 16 610 x 419.1 13 9 508 93.46
24 x 18 610 x 457.2 13 9.5 508 96.99
24 x 20 610 x 508 13 11 508 101.70
28 x 18 711 x 457.2 15 9.5 610 146.97
28 x 20 711 x 508 15 11 610 153.52
28 x 24 711 x 610 15 13 610 166.62
32 x 24 813 x 610 17 13 610 203.26
32 x 28 813 x 711 17 15 610 217.96
36 x 24 914 x 610 19 13 610 336.45
36 x 28 914 x 711 19 15 610 352.89
36 x 32 914 x 813 19 17 610 369.49
