Copper Nickel - Buttweld Fittings

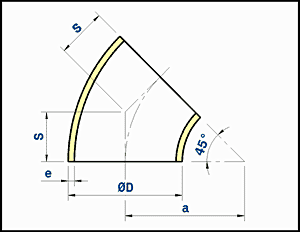

Elbows - Short Radius - Ext. From DIN 86090 In Copper Nickel




» 45° - 10 bar



Outside diameter of pipe Wall Radius Theoretical
ØD thickness weight
nominal
inch
actual
mm
e
mm
a
mm
s
mm

Kg/piece

1 30 1.5 30 12 0.02
1.25 38 1.5 32.5 14 0.04
1.5 44.5 1.5 40 17 0.06
2 57 1.5 52.5 22 0.10
2.5 76.1 2 70 29 0.22
3 88.9 2 82.5 34 0.32
4 108 2.5 100 41 0.58
5 133 2.5 125 52 0.90
6 159 2.5 150 62 1.30
7 193.7 2.5 180 75 1.90
8 219.1 3 210 87 3.00
10 267 3 255 106 4.40
12 323.9 4 305 126 8.60
14 368 4 352.5 146 11.30
16 419.1 4 400 166 16.40
18 457.2 4 455 188 20.40
20 508 4.5 505 209 28.10
24 610 5 610 253 40.90



» 45° - 14 bar




Outside diameter of pipe Wall Radius Theoretical
ØD thickness weight
nominal
inch
actual
mm
e
mm
a
mm
s
mm

Kg/piece

3 88.9 2.5 82.5 34 0.40
5 133 3 125 52 1.08
6 159 3 150 62 1.56
7 193.7 3.5 180 75 2.66
8 219.1 3.5 210 87 3.50
10 267 4 255 106 5.87
12 323.9 5 305 126 10.75
14 368 5.5 352.5 146 15.54
16 419.1 6 400 166 21.87
18 457.2 6 455 188 30.60
20 508 6.5 505 209 42.15
24 610 8 610 253 65.45

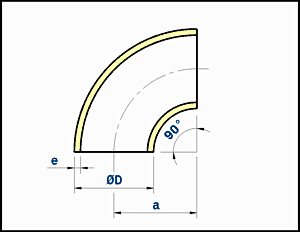

» 90° - 10 bar



Outside diameter of pipe Wall Radius Theoretical
ØD thickness weight
nominal
inch
actual
mm
e
mm
a
mm

Kg/piece

1 30 1.5 30 0.04
1.25 38 1.5 32.5 0.08
1.5 44.5 1.5 40 0.12
2 57 1.5 52.5 0.20
2.5 76.1 1.5 70 0.44
3 88.9 2 82.5 0.64
4 108 2.5 100 1.16
5 133 2.5 125 1.80
6 159 2.5 150 2.60
7 193.7 2.5 180 3.80
8 219.1 3 210 6.00
10 267 3 255 8.80
12 323.9 4 305 17.20
14 368 4 352.5 22.60
16 419.1 4 400 32.80
18 457.2 4 455 40.80
20 508 4.5 505 56.20
24 610 5 610 81.80




» 90° - 14 bar



Outside diameter of pipe Wall Radius Theoretical
ØD thickness weight
nominal
inch
actual
mm
e
mm
a
mm

Kg/piece

3 88.9 2.5 82.5 0.80
5 133 3 125 2.16
6 159 3 150 3.12
7 193.7 3.5 180 5.32
8 219.1 3.5 210 7.00
10 267 4 255 11.74
12 323.9 5 305 21.50
14 368 5.5 352.5 31.08
16 419.1 6 400 43.74
18 457.2 6 455 61.20
20 508 6.5 505 84.30
24 610 8 610 130.90
