Copper Nickel - Buttweld Fittings

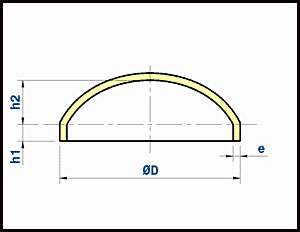

End Caps - DIN 28011 / EEMUA 146 In Copper Nickel




10 bar - DIN 28011



Outside diameter of pipe Wall Heigh Theoretical
ØD thickness weight
nominal
inch
actual
mm
e
mm
h1
mm
h2
mm

Kg/piece

1 30 1.5 14 5 0.07
1.25 38 1.5 14 6.5 0.10
1.5 44.5 1.5 14 8 0.12
2 57 1.5 18 10 0.18
2.5 76.1 2 18 14 0.31
3 88.9 2 20 16 0.39
4 108 2.5 20 20 0.75
5 133 2.5 20 24 0.95
6 159 2.5 20 29 1.35
7 193.7 2.5 20 36 1.95
8 219.1 3 20 41 2.60
10 267 3 20 50 3.85
12 323.9 4 20 61 6.60
14 368 4 20 69 8.80
16 419.1 4 20 79 12.20
18 457.2 4 20 87 12.55
20 508 4.5 20 96 18.80
24 610 5 20 115 26.70



»14 bar - DIN 28011




Outside diameter of pipe Wall Heigh Theoretical
ØD thickness weight
nominal
inch
actual
mm
e
mm
h1
mm
h2
mm

Kg/piece

3 88.9 2.5 20 16 0.53
5 133 3 20 24 1.2
6 159 3 20 29 1.6
7 193.7 3.5 20 36 2.4
8 219.1 3.5 20 41 3.10
10 267 4 20 50 4.85
12 323.9 5 20 61 8.20
14 368 5.5 20 69 12.60
16 419.1 6 25 79 17.40
18 457.2 6 25 87 17.90
20 508 6.5 25 96 26.35
24 610 8 35 115 49.6

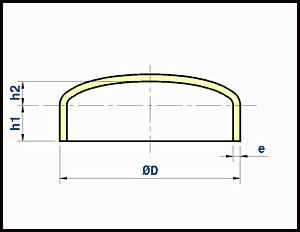

» 16 bar - EEMUA 146



Outside diameter of pipe Wall Heigh Theoretical
ØD thickness weight
nominal
inch
actual
mm
e
mm
h1 + h2
mm

Kg/piece

1.5 44.5 2.5 19.6 0.13
2 57 2.5 22 0.19
2.5 76.1 2.5 25.7 0.31
3 88.9 2.5 28.2 0.40
4 108 3 31.7 0.75
6 159 3 41 1.50
8 219.1 4 55 2.75
10 267 4.5 69 4.9
12 323.9 5.5 80 9.17
14 368 6.5 93 14.05
16 419.1 7 102 18.6
18 457.2 8 119 22.75
20 508 8.5 129 31.7
24 610 10.5 148 55.16
28 711 12 176 85.55
32 813 13.5 200 125.4
36 914 15.5 221 175.40




» 20 bar - EEMUA 146



Outside diameter of pipe Wall Heigh Theoretical
ØD thickness weight
nominal
inch
actual
mm
e
mm
h1 + h2
mm

Kg/piece

1.5 44.5 2.5 19.6 0.13
2 57 2.5 22 0.19
2.5 76.1 2.5 25.7 0.31
3 88.9 2.5 28.2 0.40
4 108 3 31.7 0.75
6 159 3.5 44 1.75
8 219.1 4.5 60 3.1
10 267 5.5 69 5.96
12 323.9 7 85 11.68
14 368 8 103 17.3
16 419.1 9 112 23.9
18 457.2 9.5 119 27
20 508 11 139 41
24 610 13 163 68.3
28 711 15 191 106.9
32 813 17 210 157.9
36 914 19 231 215
