Copper Nickel - Buttweld Fittings

Saddles - DIN 86087 / EEMUA 146 In Copper Nickel

10 bar - DIN 86087

14 bar - DIN 86087

16 bar - EEMUA 146

20 bar - EEMUA 146

10 bar - DIN 86087

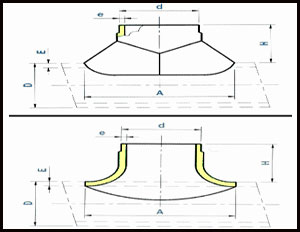

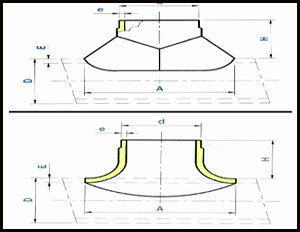

Outside diameter of pipe						Wall		Centre		Theoretical
ØD x Ød			ØD x Ød			thickness		to face		weight
nominal inch			actual mm			E mm	e mm	H mm	A mm	Kg/piece
0.5	x	0.5	20	x	20	1	1	20	32	0.05
0.75	x	0.5	25	x	20	1.5	1	20	40	0.05
0.75	x	0.75	25	x	25	1.5	1.5	22	40	0.06
1	x	0.75	30	x	25	1.5	1.5	22	40	0.06
1	x	1	30	x	30	1.5	1.5	30	50	0.1
1.25	x	1	38	x	30	1.5	1.5	30	50	0.1
1.25	x	1.25	38	x	38	1.5	1.5	35	64	0.11
1.5	x	1.25	44.5	x	38	1.5	1.5	35	64	0.14
1.5	x	1.5	44.5	x	44.5	1.5	1.5	35	74	0.15
2	x	1.25	57	x	38	1.5	1.5	35	64	0.15
2	x	1.5	57	x	44.5	1.5	1.5	35	74	0.17
2	x	2	57	x	57	1.5	1.5	40	97	0.25
2.5	x	1.25	76.1	x	38	2	1.5	35	64	0.3
2.5	x	1.5	76.1	x	44.5	2	1.5	35	74	0.34
2.5	x	2	76.1	x	57	2	1.5	40	97	0.48
2.5	x	2.5	76.1	x	76.1	2	2	50	126	0.52
3	x	1.25	88.9	x	38	2	1.5	35	64	0.36
3	x	1.5	88.9	x	44.5	2	1.5	35	74	0.44
3	x	2	88.9	x	57	2	1.5	40	97	0.5
3	x	2.5	88.9	x	76.1	2	2	50	126	0.56
3	x	3	88.9	x	88.9	2	2	55	149	0.76
3	x	1.25	88.9	x	38	2.5	1.5	35	64	0.45
3	x	1.5	88.9	x	44.5	2.5	1.5	35	74	0.55
3	x	2	88.9	x	57	2.5	1.5	40	97	0.62
3	x	2.5	88.9	x	76.1	2.5	2	50	126	0.7
4	x	1.5	108	x	44.5	2.5	1.5	35	74	0.32
4	x	2	108	x	57	2.5	1.5	40	97	0.4
4	x	2.5	108	x	76.1	2.5	2	50	126	0.65
4	x	3	108	x	88.9	2.5	2	55	149	0.79
4	x	4	108	x	108	2.5	2.5	75	188	1.3
5	x	2	133	x	57	2.5	1.5	40	97	0.4
5	x	2.5	133	x	76.1	2.5	2	50	126	0.8
5	x	3	133	x	88.9	2.5	2	55	149	1
5	x	4	133	x	108	2.5	2.5	75	188	1.2
5	x	5	133	x	133	2.5	2.5	85	233	1.7
5	x	2	133	x	57	3	1.5	40	97	0.48
5	x	2.5	133	x	76.1	3	2	50	126	0.96
5	x	4	133	x	108	3	2.5	75	188	1.44
6	x	2.5	159	x	76.1	2.5	2	50	126	0.65
6	x	3	159	x	88.9	2.5	2	55	149	1
6	x	4	159	x	108	2.5	2.5	75	188	1.2
6	x	5	159	x	133	2.5	2.5	85	233	2
6	x	6	159	x	159	2.5	2.5	95	279	2.6
6	x	2.5	159	x	76.1	3	2	50	126	0.78
6	x	4	159	x	108	3	2.5	75	188	1.44
7	x	2.5	193.7	x	76.1	2.5	2	50	126	0.95
7	x	3	193.7	x	88.9	2.5	2	55	149	1.3
7	x	4	193.7	x	108	2.5	2.5	75	188	1.4
7	x	5	193.7	x	133	2.5	2.5	85	233	1.9
7	x	6	193.7	x	159	2.5	2.5	95	279	2.5
7	x	7	193.7	x	193.7	2.5	2.5	110	334	3.2
7	x	2.5	193.7	x	76.1	3.5	2.5	50	126	1.33
7	x	4	193.7	x	108	3.5	2.5	75	188	1.96
8	x	3	219.1	x	88.9	3	2	55	149	1.3
8	x	4	219.1	x	108	3	2.5	75	188	1.8
8	x	5	219.1	x	133	3	2.5	85	233	2.7
8	x	6	219.1	x	159	3	2.5	95	279	3.8
8	x	7	219.1	x	193.7	3	2.5	110	334	4.5
8	x	8	219.1	x	219.1	3	3	125	379	5.7
8	x	4	219.1	x	108	3.5	2.5	75	188	2.1
10	x	4	267	x	108	3	2.5	75	188	1.8
10	x	5	267	x	133	3	2.5	85	233	2.3
10	x	6	267	x	159	3	2.5	95	279	3.7
10	x	7	267	x	193.7	3	2.5	110	334	4.7
10	x	8	267	x	219.1	3	3	125	379	6.1
10	x	10	267	x	267	3	3	155	447	8.7
10	x	4	267	x	108	4	2.5	75	188	2.4
12	x	5	323.9	x	133	4	2.5	85	233	2.6
12	x	6	323.9	x	159	4	2.5	95	279	3.8
12	x	7	323.9	x	193.7	4	2.5	110	334	4.9
12	x	8	323.9	x	219.1	4	3	125	379	7.7
12	x	10	323.9	x	267	4	3	155	447	10
12	x	12	323.9	x	323.9	4	4	185	560	13
14	x	6	368	x	159	4	2.5	95	279	3.85
14	x	7	368	x	193.7	4	2.5	110	334	4.2
14	x	8	368	x	219.1	4	3	125	379	4.35
14	x	10	368	x	267	4	3	155	447	7.3
14	x	12	368	x	323.9	4	4	185	560	9.45
14	x	14	368	x	368	4	4	200	613	12.35
16	x	8	419.1	x	219.1	4	3	125	379	4.35
16	x	10	419.1	x	267	4	3	155	447	6.65
16	x	12	419.1	x	323.9	4	4	185	560	9.35
16	x	14	419.1	x	368	4	4	200	613	12
16	x	16	419.1	x	419.1	4	4	225	680	17.35
18	x	10	457.2	x	267	4	3	155	447	6.3
18	x	12	457.2	x	323.9	4	4	185	560	8
18	x	14	457.2	x	368	4	4	200	613	9.7
18	x	16	457.2	x	419.1	4	4	225	680	14.85
18	x	18	457.2	x	457.2	4	4	250	800	21.7
20	x	12	508	x	323.9	4.5	4	185	560	9
20	x	14	508	x	368	4.5	4	200	613	10.8
20	x	16	508	x	419.1	4.5	4	225	680	16.8
20	x	18	508	x	457.2	4.5	4	250	800	22.8
20	x	20	508	x	508	4.5	4.5	275	880	28.8
24	x	14	610	x	368	5	4	200	613	11.1
24	x	16	610	x	419.1	5	4	225	680	17.25
24	x	18	610	x	457.2	5	4	250	800	22.8
24	x	20	610	x	508	5	4.5	275	880	26.7
24	x	24	610	x	610	5	5	300	1020	47.2

---

»14 bar - DIN 86087

Outside diameter of pipe						Wall		Centre		Theoretical
ØD x Ød			ØD x Ød			thickness		to face		weight
nominal inch			actual mm			E mm	e mm	H mm	A mm	Kg/piece
3	x	3	88.9	x	88.9	2.5	2.5	55	149	0.95
5	x	3	133	x	88.9	3	2.5	55	149	1.2
5	x	5	133	x	133	3	3	85	233	2.04
6	x	3	159	x	88.9	3	2.5	55	149	1.2
6	x	5	159	x	133	3	3	85	233	2.4
6	x	6	159	x	159	3	3	95	279	3.12
7	x	3	193.7	x	88.9	3.5	2.5	55	149	1.82
7	x	5	193.7	x	133	3.5	3	85	233	2.66
7	x	6	193.7	x	159	3.5	3	95	279	3.5
7	x	7	193.7	x	193.7	3.5	3.5	110	334	4.48
8	x	3	219.1	x	88.9	3.5	2.5	55	149	1.52
8	x	5	219.1	x	133	3.5	3	85	233	3.15
8	x	6	219.1	x	159	3.5	3	95	279	4.43
8	x	7	219.1	x	193.7	3.5	3.5	110	334	5.25
8	x	8	219.1	x	219.1	3.5	3.5	125	379	6.65
10	x	5	267	x	133	4	3	85	233	3.06
10	x	6	267	x	159	4	3	95	279	4.93
10	x	7	267	x	193.7	4	3.5	110	334	6.27
10	x	8	267	x	219.1	4	3.5	125	379	8.13
10	x	10	267	x	267	4	4	155	447	11.6
12	x	5	323.9	x	133	5	3	85	233	3.25
12	x	6	323.9	x	159	5	3	95	279	4.75
12	x	7	323.9	x	193.7	5	3.5	110	334	6.2
12	x	8	323.9	x	219.1	5	3.5	125	379	9.6
12	x	10	323.9	x	267	5	4	155	447	12.5
12	x	12	323.9	x	323.9	5	5	185	560	16.25
14	x	6	368	x	159	5.5	3	95	279	5.3
14	x	7	368	x	193.7	5.5	3.5	110	334	5.8
14	x	8	368	x	219.1	5.5	3.5	125	379	6
14	x	10	368	x	267	5.5	4	155	447	10
14	x	12	368	x	323.9	5.5	5	185	560	13
14	x	14	368	x	368	5.5	5.5	200	613	17
16	x	8	419.1	x	219.1	6	3.5	125	379	6.5
16	x	10	419.1	x	267	6	4	155	447	10
16	x	12	419.1	x	323.9	6	5	185	560	14
16	x	14	419.1	x	368	6	5.5	200	613	18
16	x	16	419.1	x	419.1	6	6	225	680	26
18	x	10	457.2	x	267	6	4	155	447	9.45
18	x	12	457.2	x	323.9	6	5	185	560	12
18	x	14	457.2	x	368	6	5.5	200	613	14.6
18	x	16	457.2	x	419.1	6	6	225	680	22.3
18	x	18	457.2	x	457.2	6	6	250	800	32.6
20	x	12	508	x	323.9	6.5	5	185	560	13
20	x	14	508	x	368	6.5	5.5	200	613	15.6
20	x	16	508	x	419.1	6.5	6	225	680	24.3
20	x	18	508	x	457.2	6.5	6	250	800	32.95
20	x	20	508	x	508	6.5	6.5	275	880	41.6
24	x	14	610	x	368	8	5.5	200	613	17.77
24	x	16	610	x	419.1	8	6	225	680	27.55
24	x	18	610	x	457.2	8	6	250	800	36.45
24	x	20	610	x	508	8	6.5	275	880	42.65
24	x	24	610	x	610	8	8	300	1020	75.5

---

» 16 bar - EEMUA 146

Outside diameter of pipe						Wall		Centre		Theoretical
ØD x Ød			ØD x Ød			thickness		to face		weight
nominal inch			actual mm			E mm	e mm	H mm	A mm	Kg/piece
1.25	x	1.25	38	x	38	2.5	2.5	35	64	0.18
1.5	x	1.25	44.5	x	38	2.5	2.5	35	64	0.23
1.5	x	1.5	44.5	x	44.5	2.5	2.5	35	74	0.25
2	x	1.25	57	x	38	2.5	2.5	35	64	0.25
2	x	1.5	57	x	44.5	2.5	2.5	35	74	0.28
2	x	2	57	x	57	2.5	2.5	40	97	0.40
2.5	x	1.25	76.1	x	38	2.5	2.5	35	64	0.37
2.5	x	1.5	76.1	x	44.5	2.5	2.5	35	74	0.42
2.5	x	2	76.1	x	57	2.5	2.5	40	97	0.60
2.5	x	2.5	76.1	x	76.1	2.5	2.5	50	126	0.65
3	x	1.25	88.9	x	38	2.5	2.5	35	64	0.45
3	x	1.5	88.9	x	44.5	2.5	2.5	35	74	0.55
3	x	2	88.9	x	57	2.5	2.5	40	97	0.62
3	x	2.5	88.9	x	76.1	2.5	2.5	50	126	0.70
3	x	3	88.9	x	88.9	2.5	2.5	55	149	0.95
4	x	1.5	108	x	44.5	3	2.5	35	74	0.38
4	x	2	108	x	57	3	2.5	40	97	0.48
4	x	2.5	108	x	76.1	3	2.5	50	126	0.78
4	x	3	108	x	88.9	3	2.5	55	149	0.94
4	x	4	108	x	108	3	3	75	188	1.56
6	x	2.5	159	x	76.1	3	2.5	50	126	0.78
6	x	3	159	x	88.9	3	2.5	55	149	1.20
6	x	4	159	x	108	3	3	75	188	1.44
6	x	6	159	x	159	3	3	95	279	3.12
8	x	3	219.1	x	88.9	4	2.5	55	149	1.73
8	x	4	219.1	x	108	4	3	75	188	2.40
8	x	6	219.1	x	159	4	3	95	279	5.06
8	x	8	219.1	x	219.1	4	4	125	379	5.70
8	x	8	219.1	x	219.1	4	4	125	379	7.60
10	x	4	267	x	108	4.5	3	75	188	2.70
10	x	6	267	x	159	4.5	3	95	279	5.54
10	x	8	267	x	219.1	4.5	4	125	379	6.75
10	x	8	267	x	219.1	4.5	4	125	379	9.14
10	x	10	267	x	267	4.5	4.5	155	447	12.40
10	x	10	267	x	267	4.5	4.5	155	447	13.05
12	x	6	323.9	x	159	5.5	3	95	279	5.22
12	x	8	323.9	x	219.1	5.5	4	125	379	6.60
12	x	8	323.9	x	219.1	5.5	4	125	379	10.58
12	x	10	323.9	x	267	5.5	4.5	155	447	12.10
12	x	10	323.9	x	267	5.5	4.5	155	447	13.75
12	x	12	323.9	x	323.9	5.5	5.5	185	560	15.40
12	x	12	323.9	x	323.9	5.5	5.5	185	560	17.87
14	x	8	368	x	219.1	6.5	4	125	379	7.10
14	x	10	368	x	267	6.5	4.5	155	447	11.80
14	x	12	368	x	323.9	6.5	5.5	185	560	15.40
14	x	14	368	x	368	6.5	6.5	200	613	20.10
16	x	10	419.1	x	267	7	4.5	155	447	11.65
16	x	12	419.1	x	323.9	7	5.5	185	560	16.35
16	x	14	419.1	x	368	7	6.5	200	613	19.50
16	x	16	419.1	x	419.1	7	7	225	680	28.20
18	x	12	457.2	x	323.9	8	5.5	185	560	16.00
18	x	14	457.2	x	368	8	6.5	200	613	19.45
18	x	16	457.2	x	419.1	8	7	225	680	29.70
18	x	18	457.2	x	457.2	8	8	250	800	43.40
20	x	14	508	x	368	8.5	6.5	200	613	20.40
20	x	16	508	x	419.1	8.5	7	225	680	31.75
20	x	18	508	x	457.2	8.5	8	250	800	43.10
20	x	20	508	x	508	8.5	8.5	275	880	54.40
24	x	16	610	x	419.1	10.5	7	225	680	36.15
24	x	18	610	x	457.2	10.5	8	250	800	47.85
24	x	20	610	x	508	10.5	8.5	275	880	56.00
24	x	24	610	x	610	10.5	10.5	300	1020	99.20
28	x	18	711	x	457.2	12	8	250	800	77.70
28	x	20	711	x	508	12	8.5	275	880	105.10
28	x	24	711	x	610	12	10.5	300	1020	137.15
28	x	28	711	x	711	12	12	360	1225	182.85
32	x	20	813	x	508	13.5	8.5	275	880	118.10
32	x	24	813	x	610	13.5	10.5	300	1020	163.15
32	x	28	813	x	711	13.5	12.5	360	1225	208.15
32	x	32	813	x	813	13.5	13.5	410	1400	225.00
36	x	24	914	x	610	15.5	10.5	300	1020	206.70
36	x	28	914	x	711	15.5	12.5	360	1225	246.85
36	x	32	914	x	813	15.5	13.5	410	1400	294.45
36	x	36	914	x	914	15.5	15.5	460	1550	357.00

---

» 20 bar - EEMUA 146

Outside diameter of pipe						Wall		Centre		Theoretical
ØD x Ød			ØD x Ød			thickness		to face		weight
nominal inch			actual mm			E mm	e mm	H mm	A mm	Kg/piece
1.25	x	1.25	38	x	38	2.5	2.5	35	64	0.18
1.5	x	1.25	44.5	x	38	2.5	2.5	35	64	0.23
1.5	x	1.5	44.5	x	44.5	2.5	2.5	35	74	0.25
2	x	1.25	57	x	38	2.5	2.5	35	64	0.25
2	x	1.5	57	x	44.5	2.5	2.5	35	74	0.28
2	x	2	57	x	57	2.5	2.5	40	97	0.4
2.5	x	1.25	76.1	x	38	2.5	2.5	35	64	0.37
2.5	x	1.5	76.1	x	44.5	2.5	2.5	35	74	0.42
2.5	x	2	76.1	x	57	2.5	2.5	40	97	0.6
2.5	x	2.5	76.1	x	76.1	2.5	2.5	50	126	0.65
3	x	1.25	88.9	x	38	2.5	2.5	35	64	0.45
3	x	1.5	88.9	x	44.5	2.5	2.5	35	74	0.55
3	x	2	88.9	x	57	2.5	2.5	40	97	0.62
3	x	2.5	88.9	x	76.1	2.5	2.5	50	126	0.7
3	x	3	88.9	x	88.9	2.5	2.5	55	149	0.95
4	x	1.5	108	x	44.5	3	2.5	35	74	0.38
4	x	2	108	x	57	3	2.5	40	97	0.48
4	x	2.5	108	x	76.1	3	2.5	50	126	0.78
4	x	3	108	x	88.9	3	2.5	55	149	0.94
4	x	4	108	x	108	3	3	75	188	1.56
6	x	2.5	159	x	76.1	3.5	2.5	50	126	0.91
6	x	3	159	x	88.9	3.5	2.5	55	149	1.4
6	x	4	159	x	108	3.5	3	75	188	1.68
6	x	6	159	x	159	3.5	3.5	95	279	3.64
8	x	3	219.1	x	88.9	4.5	2.5	55	149	1.94
8	x	4	219.1	x	108	4.5	3	75	188	2.7
8	x	6	219.1	x	159	4.5	3.5	95	279	5.69
8	x	8	219.1	x	219.1	4.5	4.5	125	379	6.4
8	x	8	219.1	x	219.1	4.5	4.5	125	379	8.55
10	x	4	267	x	108	5.5	3	75	188	3.3
10	x	6	267	x	159	5.5	3.5	95	279	6.77
10	x	8	267	x	219.1	5.5	4.5	125	379	8.25
10	x	8	267	x	219.1	5.5	4.5	125	379	11.17
10	x	10	267	x	267	5.5	5.5	155	447	15.15
10	x	10	267	x	267	5.5	5.5	155	447	15.95
12	x	6	323.9	x	159	7	3.5	95	279	6.64
12	x	8	323.9	x	219.1	7	4.5	125	379	8.4
12	x	8	323.9	x	219.1	7	4.5	125	379	13.46
12	x	10	323.9	x	267	7	5.5	155	447	15.4
12	x	10	323.9	x	267	7	5.5	155	447	17.5
12	x	12	323.9	x	323.9	7	7	185	560	19.6
12	x	12	323.9	x	323.9	7	7	185	560	22.74
14	x	8	368	x	219.1	8	4.5	125	379	8.75
14	x	10	368	x	267	8	5.5	155	447	14.55
14	x	12	368	x	323.9	8	7	185	560	18.95
14	x	14	368	x	368	8	8	200	613	24.75
16	x	10	419.1	x	267	9	5.5	155	447	15
16	x	12	419.1	x	323.9	9	7	185	560	21
16	x	14	419.1	x	368	9	8	200	613	25.1
16	x	16	419.1	x	419.1	9	9	225	680	36.25
18	x	12	457.2	x	323.9	9.5	7	185	560	19
18	x	14	457.2	x	368	9.5	8	200	613	23.1
18	x	16	457.2	x	419.1	9.5	9	225	680	35.25
18	x	18	457.2	x	457.2	9.5	9.5	250	800	51.55
20	x	14	508	x	368	11	8	200	613	26.4
20	x	16	508	x	419.1	11	9	225	680	41.1
20	x	18	508	x	457.2	11	9.5	250	800	55.8
20	x	20	508	x	508	11	11	275	880	70.4
24	x	16	610	x	419.1	13	9	225	680	44.75
24	x	18	610	x	457.2	13	9.5	250	800	59.25
24	x	20	610	x	508	13	11	275	880	69.3
24	x	24	610	x	610	13	13	300	1020	122.8
